Перестраиваемый лазерный источник WSL-110
Designed for use in fiber optic transmission testing, our WSL-110 can also be used for DWDM component evaluation and coherent communications testing. The WSL-110 features grid tuning and gridless tuning options, allowing any wavelength to be accessed.
Подробнее
Характеристики
Производитель
—
SANTEC
Модель
—
WSL-110
Перестраиваемый лазерный источник WSL-110
Designed for use in fiber optic transmission testing, our WSL-110 can also be used for DWDM component evaluation and coherent communications testing. The WSL-110 features grid tuning and gridless tuning options, allowing any wavelength to be accessed.
Features&Characteristics
- C-band or L-band tuning with high resolution, settable to any wavelength
- Fine tuning available with 1 MHz resolution
- Narrow linewidth < 100 kHz
- High output power >+ 15 dBm
- Integrated wavelength locker (high wavelength accuracy and stability)
Typical Data

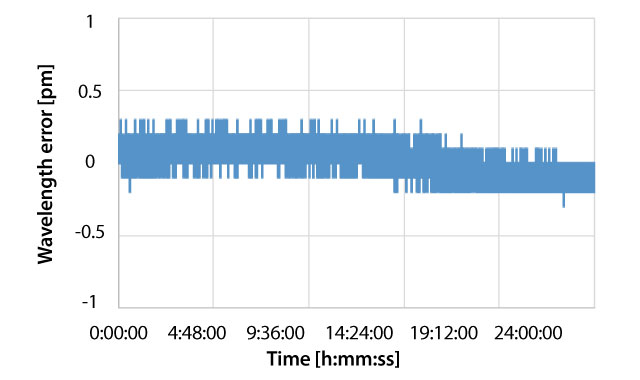

Wavelength Stability @ 24 H
Applications
- Fiber optic transmission testing
- DWDM component testing
- Coherent communications / Local oscillator
- Optical amplifier testing
Документы
| Parameter | Unit | Gridless tuning | ||
| Wavelength | C-band | L-band | ||
| Wavelength Range | nm | 1527.60 to 1565.50 | 1568.77 to 1608.76 | |
| Frequency Range | THz | 191.50 to 196.25 | 186.35 to 191.1 | |
| Channel Spacing | GHz | 25 (Any frequency is available) | ||
| Frequency Resolution | MHz | 100 (0.8 pm at 1550 nm) | ||
| Frequency Accuracy to ITU Grid | GHz | <± 2.5 / ± 1.0 (typ.) | ||
| pm | <± 20 / ±8 (typ.) | |||
| Frequency Repeatability to ITU Grid *1 | GHz | ± 0.25 (typ.) | ||
| pm | ± 2 (typ.) | |||
| Frequency Stability to ITU Grid @1hour *1 | GHz | ± 0.25 (typ.) | ||
| pm | ± 2 (typ.) | |||
| Fine Tuning Resolution | MHz | 1 (typ.) | ||
| Fine Tuning Range | GHz | ± 6 | ||
| Output Power Range | dBm | 9.5 to 15.5 | 8.5 to 14.5 | |
| Power Variation *2 | dB | ± 0.2 (typ.) | ||
| Power Stability @1hour *1, *2 | dB | ± 0.01 (typ.) | ||
| Spectrum Linewidth | kHz | < 100 | ||
| Side Mode Suppression Ratio (SMSR) | dB | > 40 / 55 (typ.) | ||
| Relative Intensity Noise *3 | dB/Hz | - 145 (typ.) | ||
| Polarization Extinction Ratio *4 | dB | 20 (typ.) | ||
| Optical Output Connector | – | FC/APC or SC/APC | ||
| Interface | – | GP-IB, USB | ||
| Operating | Temperature | ℃ | 15 to 35 | |
| Humidity | % | < 80 | ||
| Power Supply | Voltage | V | AC 100 to 240 V(± 10 %) | |
| Frequency | Hz | 50 / 60 | ||
| Dimensions (W x D x H) | mm | 210 x 300 x 80 | ||
| Weight | kg | 3 | ||
*: All specifications are quoted after 1 hour warm-up period. *1: At constant temperature ± 0.5 K. *2: Measured by fiber with angled polished connector. *3: 10 MHz to 3 GHz. *4: SLOW axis, angle accuracy < 10 deg.
