- SM and PM Available Wavelengths: 780 to 1550 nm
- Single Mode or Multimode FC/PC Fiber Interface
- Stable, Low Noise, Constant Power Operation
- Power Level is Adjustable via Knob and BNC Modulation Input
- Interlock Circuit Provided via 2.5 mm Mono Jack
Thorlabs offers single mode and polarization-maintaining fiber-coupled laser sources that emit in the NIR portion of the spectrum. Each benchtop laser source features both a pigtailed Fabry-Perot laser diode and current controller in a single unit.
The front panel of each laser source displays the output power in mW, an on/off key, an enable button, and a knob to adjust the laser power. The back panel includes a BNC input that allows the laser diode drive current to be controlled via an external DC or sine wave voltage source and a remote interlock input.
Please refer to the table to the right for all of our single channel benchtop laser sources.
a. Complete specifications are available in the Specs tab above.
Single Mode Fiber-Coupled Laser Sources
- Seven Wavelengths Available: 785 to 1550 nm
- Minimum Full Output Powers of up to 20 mW
- Fiber Patch Cables Sold Separately
These Single Mode Fiber-Coupled Laser Sources conveniently package a pigtailed Fabry-Perot laser diode and current controller into a single benchtop unit. The Fabry-Perot laser diode inside each unit is pigtailed to a single mode fiber that is terminated at an FC/PC bulkhead (wide and narrow key compatible) attached to the front panel of the unit. Thorlabs offers single mode fiber optic patch cables for connecting to the bulkhead on the front panel. To minimize losses, we recommend using a fiber patch cable that is the same fiber type as the fiber-pigtailed laser; refer to the Specs tab for the internal fiber type used for the pigtail. Additionally, to reduce noise from back reflections, we recommend that a hybrid FC/PC to FC/APC cable be used with the FC/PC end connected to the laser source.
Also found on the front panel is a display that shows the output power in mW, an on/off key, an enable button, and a knob to adjust the laser power. The back panel includes an input that allows the laser diode drive current to be controlled via an external DC or sine wave voltage source and a remote interlock input.
Note: The laser must be off when connecting or disconnecting fibers from the device, particularly for power levels above 10 mW.
- Three Wavelengths Available: 785 nm, 1310 nm, and 1550 nm
- Minimum Full Output Powers of up to 6.25 mW
- Fiber Patch Cables Sold Separately
- Slow Axis of the PM Fiber Aligned to the Narrow Key of the FC/PC Bulkhead Connector
These Polarization-Maintaining Fiber-Coupled Laser Sources package a pigtailed Fabry-Perot laser diode inside each benchtop unit. The laser diode is pigtailed to a single mode PM fiber that is terminated at an FC/PC bulkhead attached to the front panel of the unit. During the pigtailing process, the fiber alignment is actively maintained so that the polarization axis of the laser diode is aligned with the slow-axis of the PM fiber. In addition, the slow-axis of the PM fiber is aligned to the narrow key of the FC/PC bulkhead connector on the front panel of the benchtop unit. Thorlabs offers polarization-maintaining fiber optic patch cables for connecting to the bulkhead on the front panel. To minimize losses, we recommend using a fiber patch cable that is the same fiber type as the fiber-pigtailed laser; refer to the Specs tab for the internal fiber type used for the pigtail. Additionally, to reduce noise from back reflections, we recommend that a hybrid FC/PC to FC/APC cable be used with the FC/PC end connected to the laser source.
Also found on the front panel is a display that shows the output power in mW, an on / off key, an enable button, and a knob to adjust the laser power. The back panel includes an input that allows the laser diode drive current to be controlled via an external voltage source and a remote interlock input.
Note: The laser must be off when connecting or disconnecting fibers from the device.
S1FC1310PM Shown with PM1300-XP
Polarization-Maintaining Patch Cable

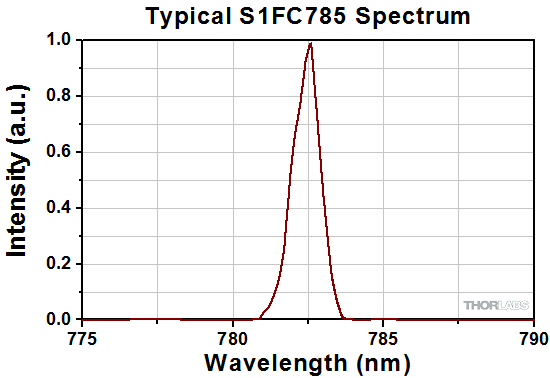

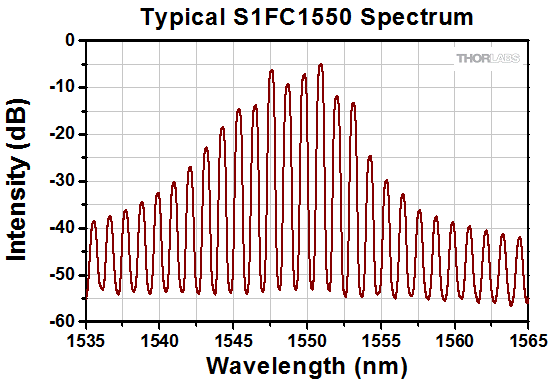

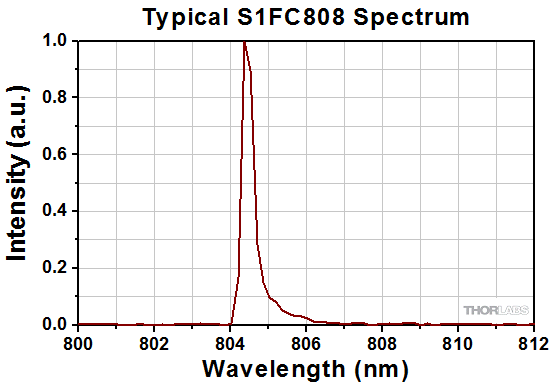

a. Spectral plots are typical, and actual spectra vary from lot to lot. For further information, please contact Tech Support.
b. Mode Field Diameter (MFD) is specified as a nominal value.
Polarization-Maintaining Source Specifications | ||||
---|---|---|---|---|
Item # | S1FC780PM | S1FC1310PM | S1FC1550PM | |
Wavelengtha | 785 nm | 1310 nm | 1550 nm | |
Minimum Full Output Power | 6.25 mW | 1.5 mW | 1.5 mW | |
Extinction Ratioa | >20 dB | >23 dB | >23 dB | |
Stability |
15 min: ±0.05 dB, 24 hr:±0.1 dB (After 1 hr Warm-up at 25 ± 10 °C Ambient) |
|||
Display Accuracy | ±10% | |||
Setpoint Resolution | 0.01 mW | |||
Laser Class | 3B | 1 | ||
AdjustmentRange | ~0 mW to Full Power | |||
Environmental | ||||
Operating Temperature | 15 to 35 °C | |||
Storage Temperature | 0 to 50 °C | |||
AC Input | 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz | |||
Modulation Input | 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only | |||
Modulation Bandwidth |
5 kHz Full Depth of Modulation 30 kHz Small Signal Modulation |
|||
Fiber | PM780-HP | PM1300-HP | PM1550-HP |
a. The information provided in the specifications table is meant to serve as a guideline. However, since each pigtailed laser diode is unique, the specific data is included on a specifications sheet that is shipped with the product.
